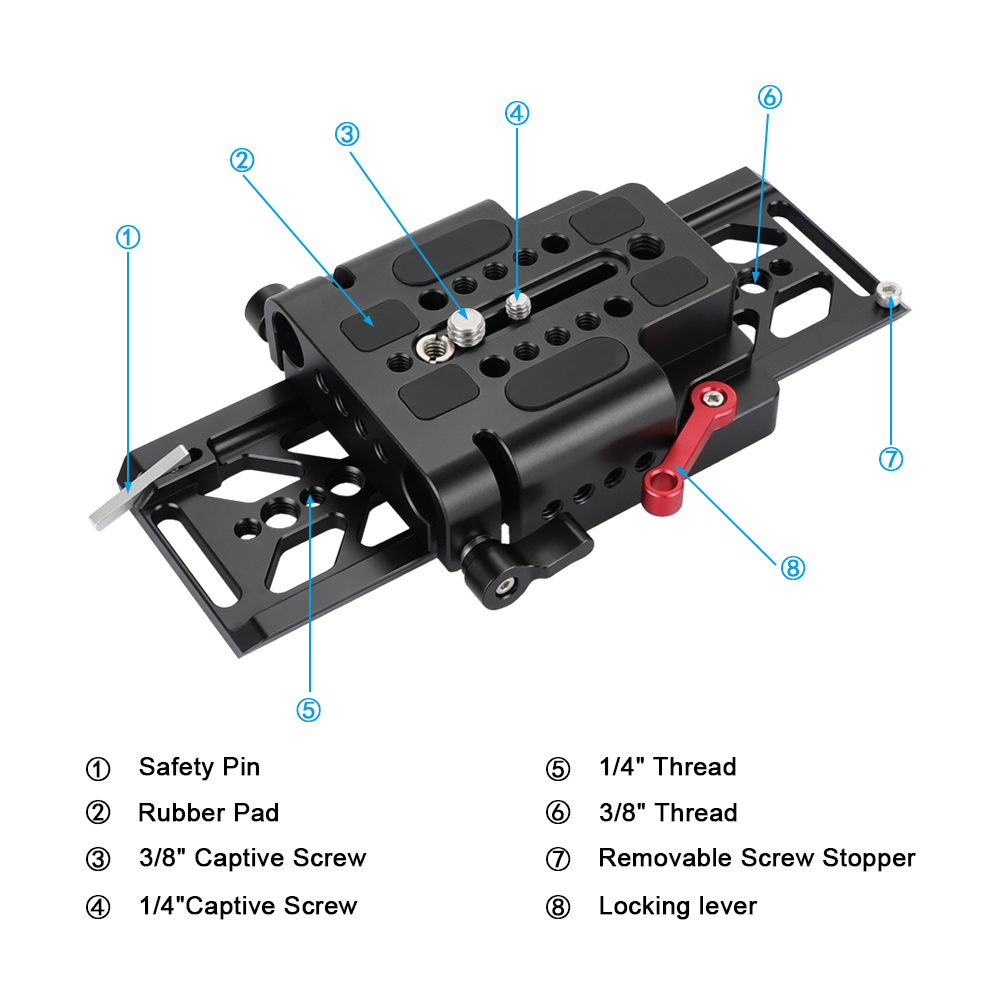

Product Highlights
• 8" ARRI-Standard Bottom Dovetail
• Dovetail Bridge Plate
• 15mm LWS Rod Support
• 1/4"-20 and 3/8"-16 Camera Mounts
• 1/4"-20 and 3/8"-16 Accessory Threads
• Red Locking Switch, Safety Pin, Stopper Screw
• Aluminum Alloy Construction
Product Description
Integrate this 8" ARRI-Standard Dovetail Plate and 15mm LWS Baseplate into your rig configuration and provide additional adjustment length to properly balance your camera. The dovetail plate features a safety pin and stopper screw for security, and it incorporates 1/4"-20 and 3/8"-16 threaded holes to integrate accessories to the front or rear of your camera, as well as attach the dovetail to a tripod quick release plate or other support. The bridge plate offers dual 15mm rod clamps for rod-mounted configurations as well as a red locking switch that enables an instant one-key lock or release of the bottom dovetail, and it also provides a section with multiple 1/4"-20 accessory mounting threads. The dovetail is weight-reducing cutout designed. The sled slides into the dovetail and offers two camera screws, one 14"-20 and one 3/8"-16 for mounting your camera. Spare camera screws are also included.
Net Weight: 486 g

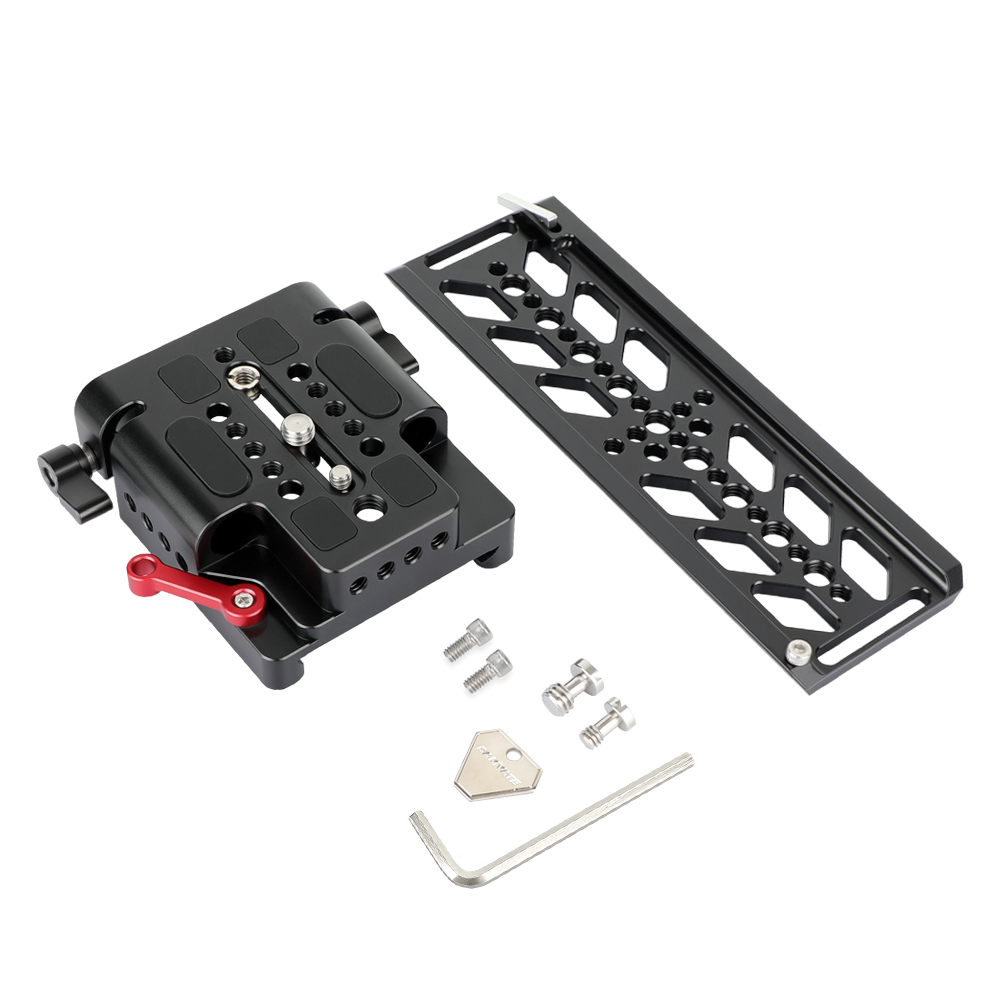

Package Included:
1 x 8" ARRI-Standard Bottom Dovetail
1 x Dovetail Bridge Plate
1 x 1/4"-20 Camera Screw
1 x 3/8"-16 Camera Screw
2 x 1/4"-20 Mounting Screw
1 x Allen Wrench
