Product Highlights
• Tilt-Articulating Battery Support

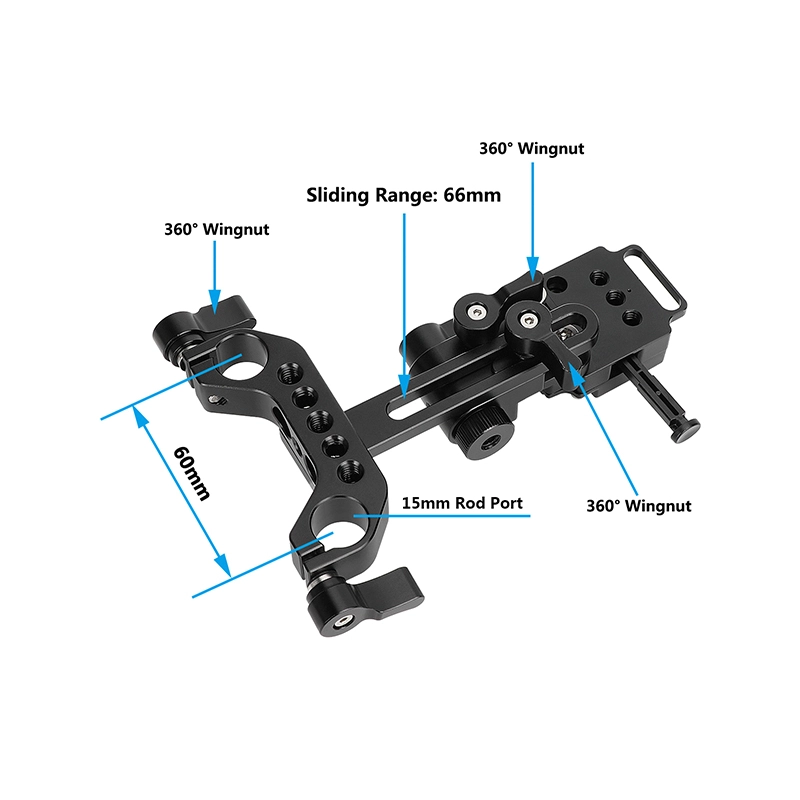

• 2.6" Vertical Adjustment Range
• Quick Release Female V-Lock Mount
• 15mm LWS Rail Block, 60mm Spacing
• 1/4"-20 Mounting Holes & Slot
• Rotating Ratchet Thumbscrew
• Aluminum Alloy Construction
Product Description

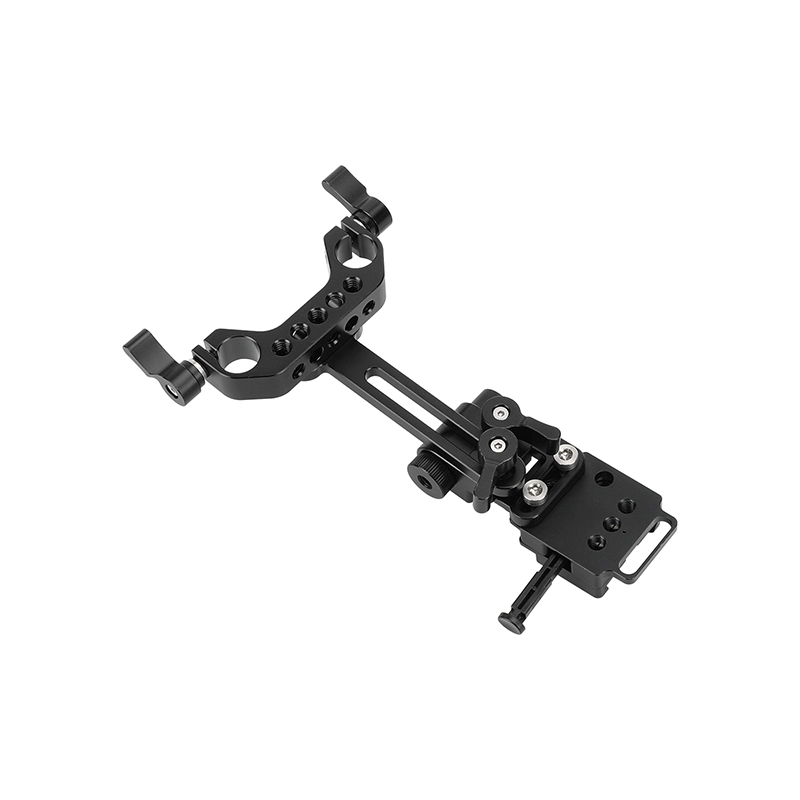

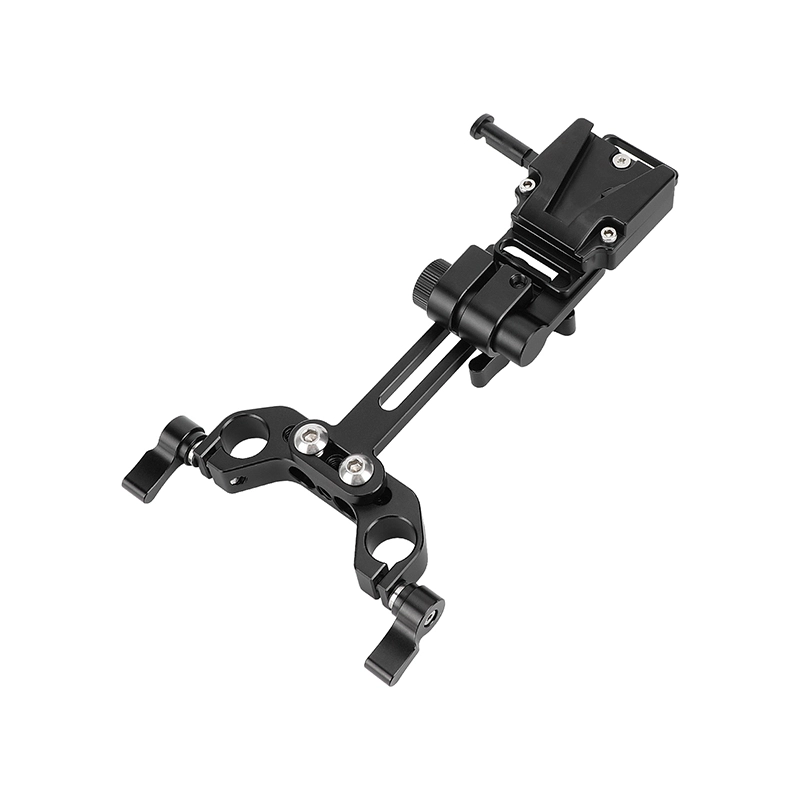

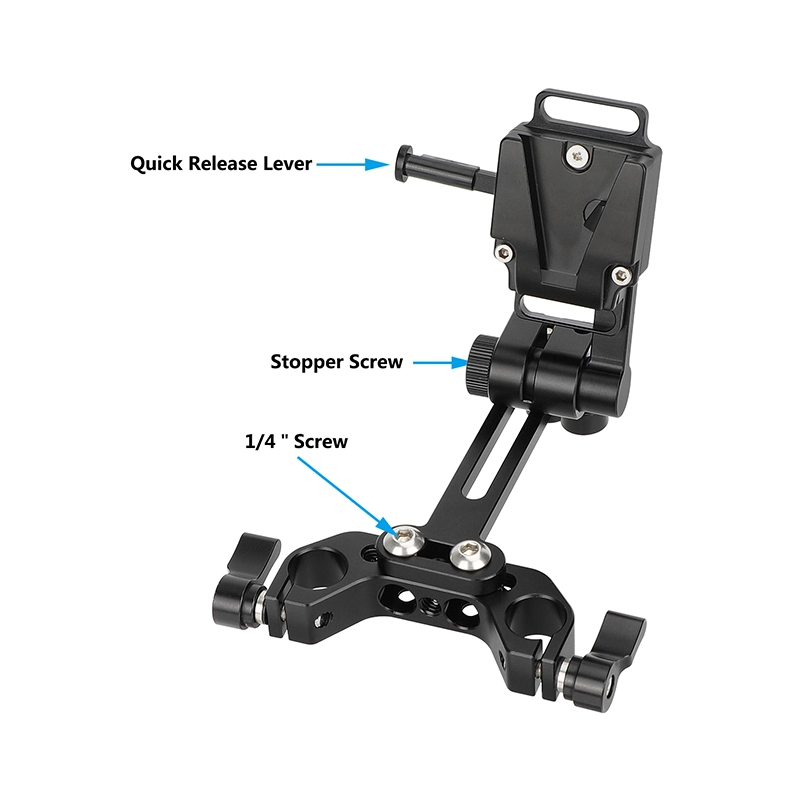

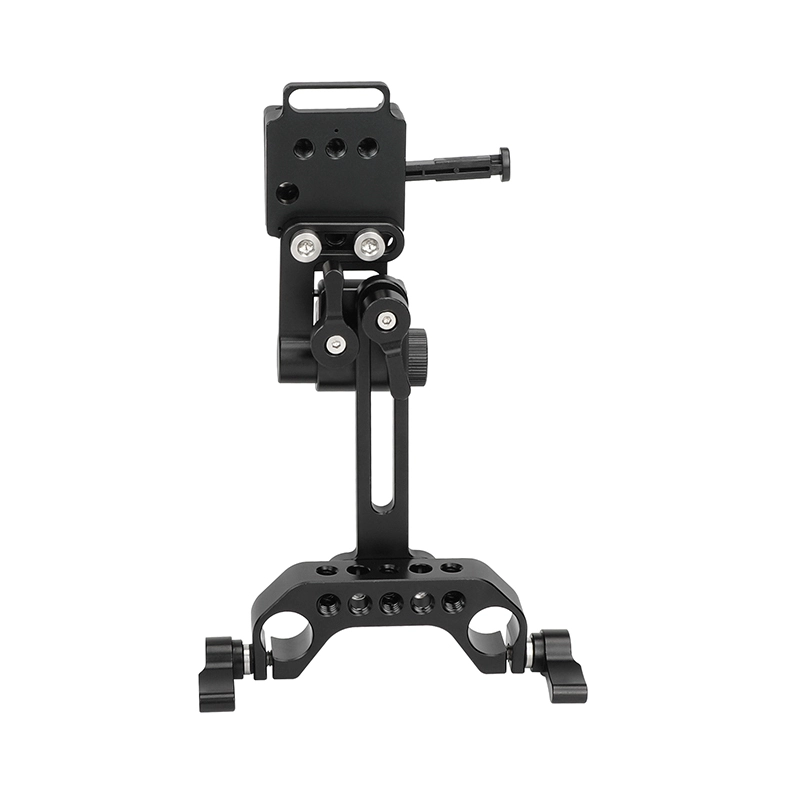

With this battery support, you can add a high capacity battery to the 15mm rig system. It is tilted adjustable via the hinge, which connects to the V-dock, and also vertically adjustable via a ratchet thumbscrew, allowing you to adjust your V-mount battery to the most suitable angle. The V-lock mount connects to the rod clamp via a rail using 1/4"-20 screws. There are 1/4"-20 threaded holes for attachments of more accessories. A QR lever, incorporated with the dock, allows the battery to be easily mounted and unmounted.
Net Weight: 223 g
Package Included

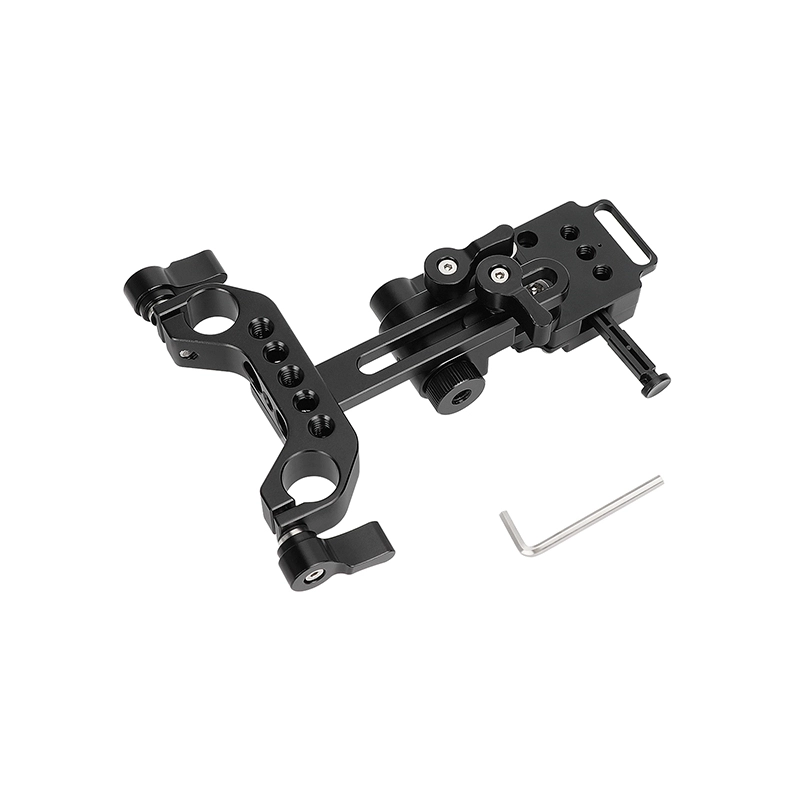

1 x Adjustable Female V Lock Mount
1 x Rod Block with Rail
1 x Allen Wrench
