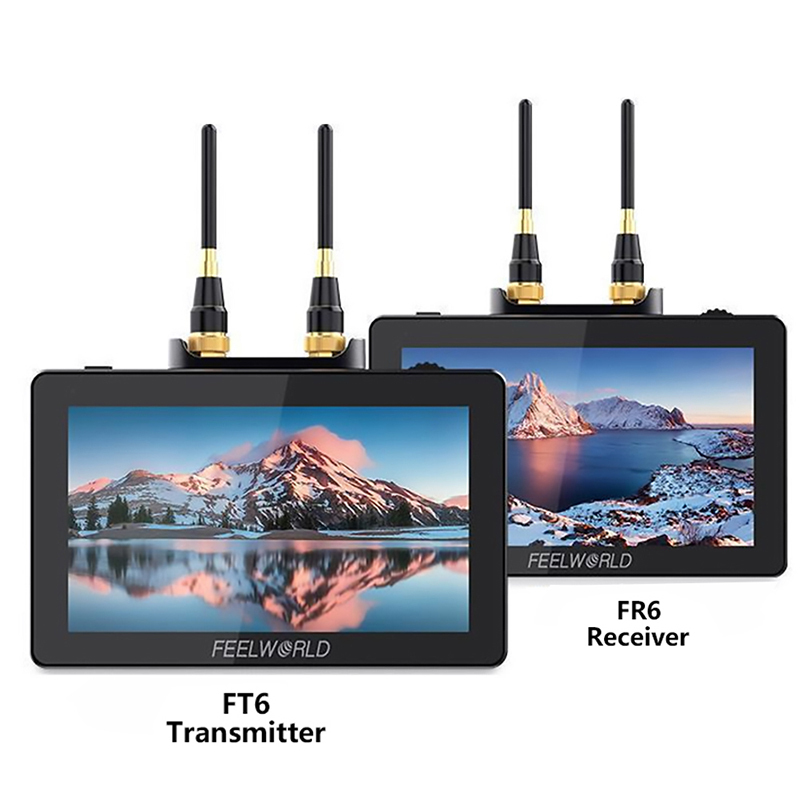

CAMVATE FeelWorld FT6 FR6 5.5 Inch Wireless Video Transmission System With Transmitter And Receiver DSLR Camera Field Director AC DP Monitor

SKU: C2770

0.0 (0 Reviews)

$699.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $0.50 OFF ON ORDERS OVER $9.99
GET $2.00 OFF ON ORDERS OVER $19.98
GET $3.00 OFF ON ORDERS OVER $39.00
GET $10.00 OFF ON ORDERS OVER $100.00
GET $25.00 OFF ON ORDERS OVER $200.00
GET $50.00 OFF ON ORDERS OVER $300.00
GET $100.00 OFF ON ORDERS OVER $500.00

13/04/2025/00:00:00 - 31/12/2026/23:59:00

Add to Favorites (2)

1/1

Description

**Display Specs**
• Brand Model: FeelWorld FT6 FR6	Condition: genuine & 100% brand new
• Display Size: 5.5" touch screen	• Aspect Ratio: 16:9
• Dimension: 148L×103.5H×41W (mm)	• Net Weight: 370 g
• Screen Resolution: 1920×1080 pixels	• Luminance: 500 cd / ㎡
• Contrast Ratio: 1000:1	• Mounting: 1/4" female thread (top /bottom /right )

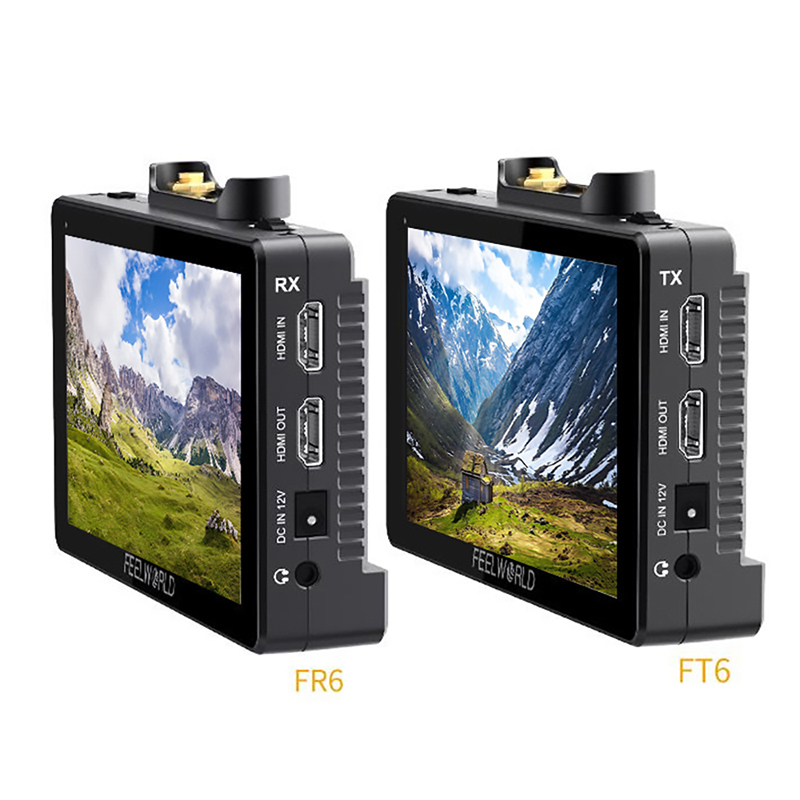

• Input: HDMI	• Output: HDMI / DC OUT 8V
• DC Input Power: 7 ~ 24 VDC	• Audio: 3.5mm stereo headphone
• Battery Plate: F970 Battery Plate	• Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Wireless Specs

• Frequency: 5.1 ~ 5.9 (GHz)	• System Latency: 70 ms
• Video Compression Format;	• Transmission: 250m
• Antenna Mode: 2 dBi × 2

Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.

Product Description
• 800FT transmission range with 70ms ultra-low latency and other advance features make FT6, FR6 suitable for film crew shooting. Ideal for the director and the photographer.
• FT6, FR6 have built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG. The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplify the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most while shooting.
• Some cameras can output logarithmic colors pace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65.). FT6, FR6 allows you to load internally up to custom LUTs (Up to 50 user files can be imported), looks or profiles at any time via the TYPE-C interface to USB . Slot and instantly select between them, maintaining creative intent, always.
• There are 11 signal channels for selection for the wireless monitor. You can choose the best channel freely. When you don’t need the transmission function, you can long press the power icon to turn off. Plus, there is WPS pairing function. When you need to replace the transmitter or receiver, please long press WPS of both the transmitter (TX) and receiver (RX) about 1 second to enter the pairing mode, and wait for the pairing to success.
• The built-in monitor is also an interactive touchscreen that makes setting up the FT6, FR6 incredibly easy. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. You can use two-finger zoom gesture to easily zoom in and out of the shooting screen. Plus, they also support physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.

Touch Screen Operating Instruction
1. Long press to turn on and off the power; short press to turn on and off the screen touch function.
2. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
3. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
4. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
5. Swipe from the right side of the sceen to left to open the channel display. There are 11 channels for selection.
6. Click any space beside menu to exit the menu.

Net Weight: 1.44 kg

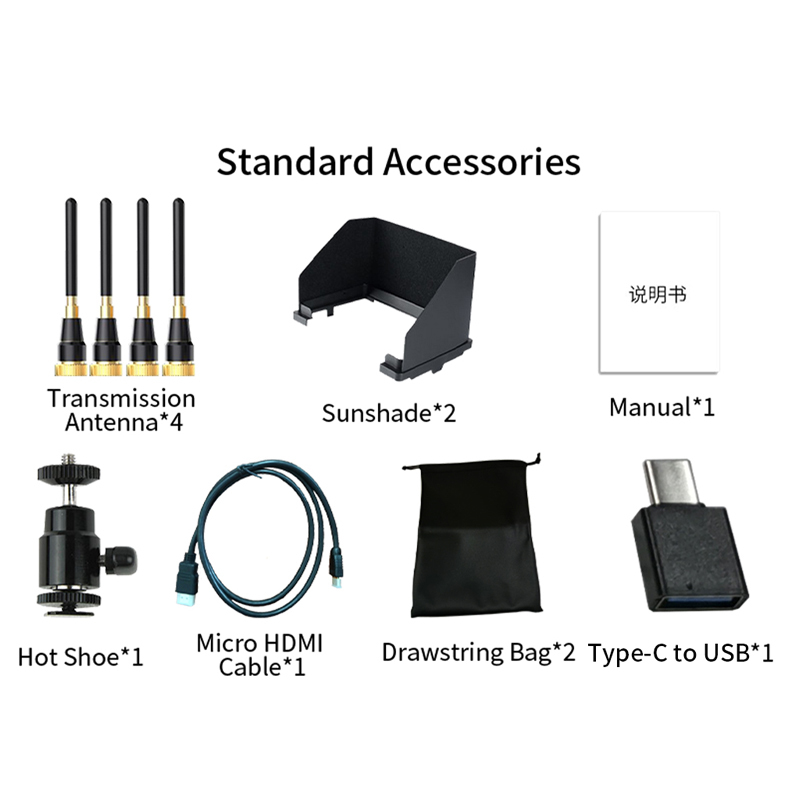

Package Included:
1 × FeelWorld FT6 Transmitter
1 × FeelWorld FR6 Receiver
2 × Sunshade
1 × Hot Shoe
4 × Transmission Antenna
2 × Drawstring Bag
1 × Type-C to USB
1 × Manual
